Majestic 15” LED TV 12V HD, USB, MMMI, Low Power Current Draw

Majestic 12 Volt 15.6" LED TV is the perfect size TV for all your mobile applications in your boat, caravan or RV. The L152ES has all the features and functions to provide you the ultimate entertainment system.


Majestic L152ES


The Majestic L152ES 12 Volt LED TV has been specifically engineered using the latest state-of-the-art-technology to handle the marine and RV environment. With over 10 years experience in developing energy efficient entertainment products globally Majestic has developed the power supply of the L152ES to give you a flexible voltage range whilst being ultra energy efficient, then packed it with a host of features and functions that ensures that you will find the L152ES to be the ultimate 12 Volt LED TV for your boat or RV.

Power Efficiency: The Majestic L152ES draws 0.7 Amp @ 12V which is less than 10 Watts of power while watching TV. The Majestic L152ES is our pinnacle of low power consumption for LED TV's, proving that clever design really can be energy efficient. When you compare this low power consumption to an ordinary 100 Watt light bulb, you can operate 10 Majestic 15" LED TV’s for the same amount of energy and that’s one of many reasons why Majestic is a global leader in the 12 Volt entertainment industry.

USB Port: The USB input provides two functions, one as a Multi Media input so you can simply plug in your portable hard drive with all your movies and music and the TV will access all your files and playback whatever you choose. The second and very important feature is PVR, Personal Video Recording. This allows you to put in a USB (which the TV will need to format) and then when you are watching TV you can select record and the TV will record your movie or TV station to your USB device to allow you to play back at any later date. The PVR function is only available for DVB-T Freeview and not for Satellite.

Voltage Range: The Majestic range of LED TV's are designed to easily handle flexible voltage ranges from 9V to 16V DC. The TV will exceed these limits for a short period of time. A large voltage range is another important factor for TV's that are used in the 12 Volt mobile environment. The biggest problem is power in boats and RV can run pretty low, and given the sensitivity of most LED TV's they simply stop working once you go below 11.5V, and most of them certainly don't like power over 13V to 14V. Majestic TV's are known globally as the most versatile TV's to handle the harshest transient voltage changes in Boats and RV's

One Touch Tuning: One Touch TV tuning, this is a special feature our engineering team have added to the TV's. This cool easy to use feature is designed for those travellers that are constantly moving from one location to another and then need to tune in the local TV stations. The Majestic TV remotes now have a "scan" button, so simply push this button and the TV will do a full scan for you. This means you no longer need to fumble around the software menu to remember how to re-tune the TV.

TV Tuner: HD Digital DVB-T TV Tuners built into the Majestic TV allows you to be able to select which system to you want to watch. The DVB-T HD tuner is for Freeview TV for those that do not have satellite but want to get digital TV signal using their roof mount TV antenna. Be sure to check out the full range of Majestic TV antenna too, as this will give you the optimum performance when you have the matched set.

Weight: The physical design of the L152ES is to be able to withstand the harsh Outback and tough Marine environment. Weighing only 1.2Kg allows this TV to be mounted in almost any location without stressing the surface and with a 100x100mm Vesa hole spacing this TV can be mounted in various different locations using any of the Majestic brackets, from the LA7C simple wall bracket, to the ARM2601 swing arm with locking pin. The TV can be installed almost anywhere and with the wide viewing angles you will always see the perfect picture.

Reception: The most important factor in being able to receive TV signal is the TV Tuner. Most companies do not invest the time or money to enhance the TV tuner because in most cases the TV tuner is connected to a cable system with a strong signal level. However in boats and RV's Digital TV reception is all they have access to (unless they have satellite installed). So the team of engineers at Majestic have been working to ensure that the TV tuner is of the highest possible gain using the latest in SMT technology. This ensures that the weakest signal is still amplified to give you the best possible signal reception in those distance and difficult areas.


True 12 Volt: Majestic was the worlds first company to make 12 Volt LCD TV's way back in 2000. Majestic was the innovators in engineering the ultimate internal power supply system to be able to handle a variety of electrical power supply issues. This includes electrical noise interference, to prevent static and other electrical noise from causing issues with your TV. Voltage fluctuations is another major impact on electronics and the Majestic TV's were developed to be able to handle these sometimes sudden transients. The Majestic TV's do not need any external power regulators or other type of filters, they use state-of-the-art electronic components and in turn this gives the TV the reliability it needs for a longer life in the harsh 12 Volt Mobile Industry.

Warranty: Majestic products are designed and developed in Australia and exported globally, with over 15 years experience Majestic stands by the quality of our products by providing a 3 year worldwide warranty. Our engineering design team has paid attention to all the important details to ensure that when you purchase a product of this quality and caliber that you can enjoy many years of reliable performance in the toughest conditions where domestic brands will not survive.



MJL152ES

Data sheet

Accessories Supplied
12V Cigarette Plug, 240V Power Cable, Remote Control, MINI YPbPr Cable, Mini AV cable, Manual
Aspect Ratio
16:9
Brightness
250cdm
Colour
Gloss Black
Current Draw @ 12 Volt
0.7 Amp
Dimensions: HxWxD No Stand
24 x 38 x 5cm
Dimensions: HxWxD With Stand
27 x 38 x 12cm
Features
DVB-T2 and DVB-S2
Headphone Output
1x 3.5mm Audio
Input Component
1x Red, Green, Blue RCA
Input Composite
1x Video RCA
Input HDMI
1x HDMI
Input USB
1x USB PVR & Multi Media
Input VGA
1x VGA 15Pin D
Resolution
1366x768
Screen Size (Diagonal)
15.6 Inches
Shipping Carton Size Single Unit
43 x 12 x 29 (cm)
Shipping Weight
1.9Kg
UPC Barcode
854273002731
Vesa Size
100x100mm
Viewing Angle
120Deg Horizontal 90Deg Vertical
Voltage Range
9V to 27V DC
Watts Used @ 12 Volts
8.4 Watts @ 12V
Weight
1.2 Kg

Download

L152ES Manual

Majestic L152ES Instruction Manual

Download (5.93M)

L152ES CAD Drawing

Majestic L152ES CAD Case Drawing Dimensions

Download (155.65k)

L152ES USB Formats

L152ES USB Multi Media Formats

Download (118.04k)

Android Devices

List of Compatible Android Phones and Tablets

Download (153.02k)

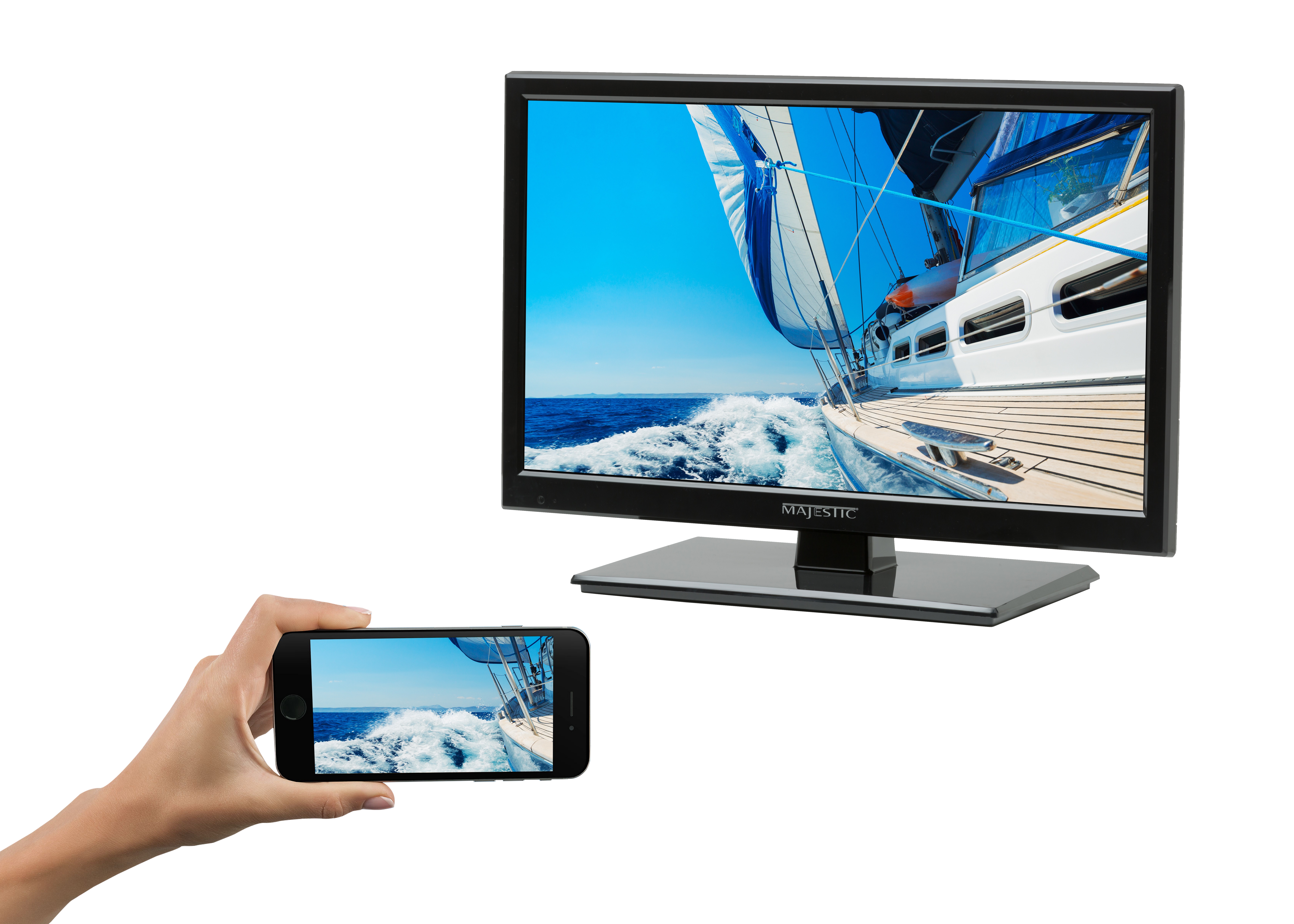

L152ES With Hand

Hi Res Image L152ES with Hand Holding Phone

Download (3.82M)

L152ES Front

Hi Res Image Front

Download (1.1M)

L152ES Left Side

Hi Res Image Left Side

Download (1.26M)

L152ES Right Side

Hi Res Image Right Side

Download (1.24M)

L152ES Manual German

L152ES Instruction Manual in German

Download (3.82M)
